015621034
Kabel U/FTP cat.6A, AWG23, 500MHz, Dca, LSOH CPR, moder, 500m
464,00 €
Cat6A solid copper cable
U/FTP foil screened pairs
Outer sheath colour aqua
Euroclass Dca-s2,d1,a1
25 Year system warranty
CIBSE TM65 Embodied Carbon: 234.461 kg CO2e
ZALOGA: Na zalogi
ŠIFRA: 006736
KATEGORIJE: CAT.6A MREŽNA OPREMA, EXCEL NETWORKING OPREMA, KABLI INŠTALACIJSKI, BAKRENIExcel Solid Cat6A Cable U/FTP LSOH CPR Euroclass Dca 500 m Reel Aqua
Part Code: 100-990
Excel solid Cat6A cable screened U/FTP LSOH is manufactured to meet and exceed the ISO, CENELEC and TIA standards and supplied on 500m Reels. Excel Cat6A screened (U/FTP) cable takes the performance capabilities of copper infrastructure to new levels.
This delivers Class EA/Augmented Category 6 link performance over distances of up 90m which supports the applications including 10GBASE‐T, 10 Gigabit Ethernet.

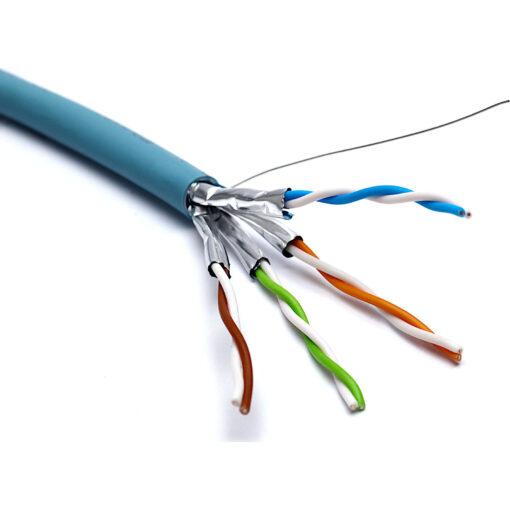

Each cable consists of 4 pairs individually wrapped in high quality, strong, aluminium/polyester foil tape providing screening for each pair.
The foil configuration ensures separation of the pairs that ensures the performance. The individual pairs are set to different lay lengths to ensure optimum performance.
| Conductor surface | |
|---|---|
| Awg size | |
| Conductor category | |
| Total number of cores | |
| Specification core insulation | |
| Core Insulation | |
| Core identification | |
| Stranding element | |
| Conductor screening | |
| Outer sheath colour | |
| Outer diameter approx | |
| Category | |
| NPV Value |
